Fractal Design Meshify 2 XL Light Tempered Glass

Спецификации на Fractal Design Meshify 2 XL Light Tempered Glass E-ATX

Fractal Design Meshify 2 XL Light Tempered Glass

Bigger, bolder and better? With more of everything, the Meshify 2 XL is ready to take on your most ambitious builds.

• Iconic mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
• Spacious and extensively adaptable dual-layout interior
• Easily accommodates large motherboards up to and including E-ATX and SSI-EEB
• Open Layout supports radiators up to 480/420 mm (front), 480/420 mm (top) and 280/240 mm (base)

Detachable front filter

• The nylon filter is easily removed from the hinged mesh panel for increased airflow
• Tether-free bezel for easier access to front fan mounts
• Three pre-installed Dynamic X2 GP-14 fans and room for more (max 9x 140 mm / 11x 120 mm)

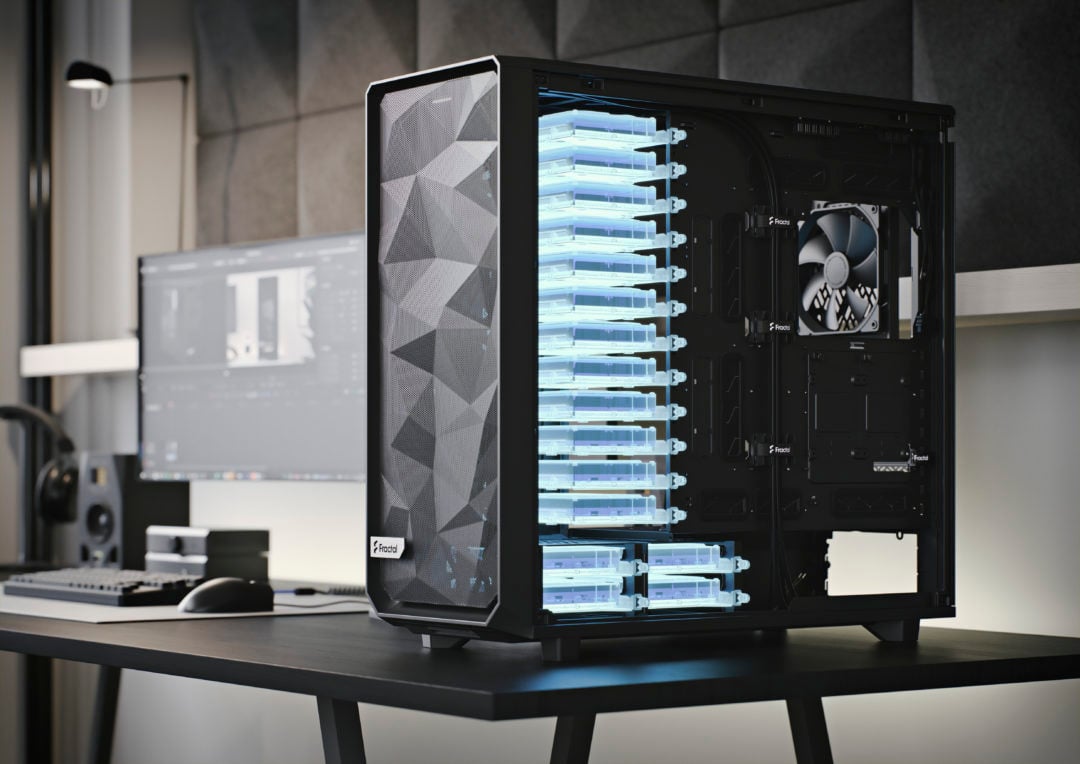

Superlative storage

• Optional accessories allow expansion up to 18 HDDs and 5 SSDs in Storage Layout
• The included Multibrackets lets you convert any unused fan positions to HDD, SSD or pump mounts
• Tool-less, top-latching panels allow quick access while preventing accidental drops

Flexible dual-layout design

• Convert to Open Layout and get more than enough room for your custom water loop with large reservoirs and radiators up to 480 mm
• Support for radiators up to 480/420 mm (front), 480/420 mm (top) and 280/240 mm (base)
• An expansive internal layout easily accommodates large motherboards up to E-ATX and SSI-EEB

Specifications

• 3.5"/2.5" Universal drive mounts: 6 included, 18 positions total + 2 Multibrackets
• Dedicated 2.5" drive mounts: 2 included, 5 positions total
• Expansion slots: 9 + 3
• Front interface: 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button
• Total fan mounts: 11x 120 mm or 9x 140 mm
• Front fan: 4x 120 mm or 3x 140 mm, (2x Dynamic X2 GP-14 included)
• Top fan: 4x 120 mm or 3x 140 mm
• Rear fan: 1x 120/140 mm, (1x Dynamic X2 GP-14 included)
• Bottom fan: 2x 120/140 mm
• Dust filters: Top, front and bottom
• Fixed velcro straps: Yes
• Cable routing grommets: Yes
• Captive thumbscrews: HDD, SSD and PSU brackets
• Left side panel: Tempered glass dark tint
• Right side panel: Steel

Compatibility

• Motherboard compatibility: E-ATX / ATX / mATX / Mini-ITX / EE-ATX / SSI-CEB / SSI-EEB
• Power supply type: ATX
• PSU max length: 250 mm (both HDD cages installed)
• GPU max length: Storage layout: 359 mm Open layout: 549 mm (524 mm w/ front fan)
• CPU cooler max height: 185 mm
• Front radiator: Up to 480/420 mm
• Top radiator: Up to 480/420 mm
• Rear radiator: 120 mm
• Bottom radiator: Up to 240/280 mm
• Cable routing space: 30 mm

Dimensions

• Case dimensions (LxWxH): 600 x 240 x 566 mm
• Case dimensions w/o feet/protrusions/screws: 588 x 240 x 547 mm
• Package dimensions (LxWxH): 651 x 330 x 684 mm
• Net weight: 14.1 kg
• Gross weight: 16.4 kg
• Volume: 77,2 liters

Other

• Warranty: 2 Years
• Package contents: Meshify 2 XL Case, user manual, accessory box, screw box
• EAN: 7340172702559
• UPC: 843276102555
• JAN: 4537694277358
• Product code: FD-C-MES2X-01
