Thermaltake View 370 TG ARGB Black

Спецификации на Thermaltake View 370 TG ARGB Black ATX

Midi Thermaltake View 370 TG ARGB Black, 4711658546333, CA-11N-00M1WN-00

View 370 TG ARGB Mid Tower Chassis: CA-11N-00M1WN-00

The View 370 TG ARGB Mid Tower Chassis is an ATX case that supports Hidden-Connector Motherboards from ASUS, MSI and GIGABYTE and comes with pre-installed with a SF360 ARGB PWM Reverse Fan on the MB side and a SF120 ARGB PWM Fan at rear.

Users can add an optional 6.0" LCD Screen Kit, compatible with AI Forge via TT RGB PLUS 3.0, for easy customization through the TT PlayLink app.

• Motherboard: Mini ITX/Micro ATX/ATX
• SIDE PANELS: 4mm TG × 4
• Fan Support: Up to ten 120mm fans
• AIO Support: 360/280/240/140/120mm
• Dimensions (mm): 492.5 x 235 x 478.8
• Clearance (mm)
  • CPU Cooler: 165
  • GPU: 420
  • Power Supply: 279
• I/O Ports
  • 1 × USB Type-C
  • 2 × USB 3.0
  • 1 × HD-Audio
• Storage
  • 1 × 3.5” HDD
  • 2 × 2.5” SSD

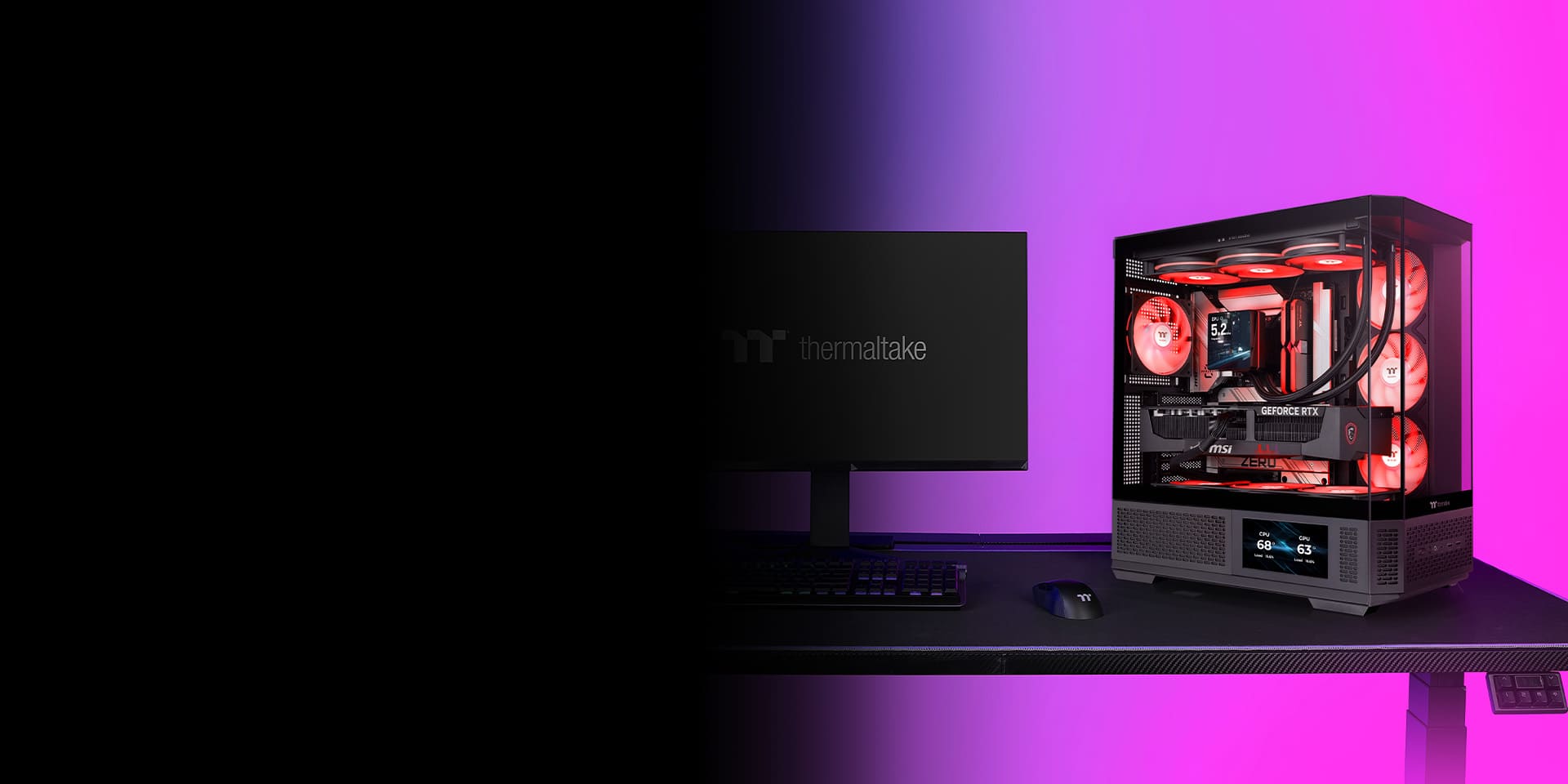

View 370 TG ARGB Mid Tower Chassis

The View 370 TG ARGB Mid Tower Chassis is an ATX case that supports Hidden-Connector Motherboards from ASUS, MSI and GIGABYTE and comes with pre-installed with a SF360 ARGB PWM Reverse Fan on the MB side and a SF120 ARGB PWM Fan at rear.

Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to ten 120mm fans can be installed in the chassis, one 360mm radiator on the top or at the motherboard side, giving end-users greater flexibility to build their ideal configuration.

The image is for reference only.

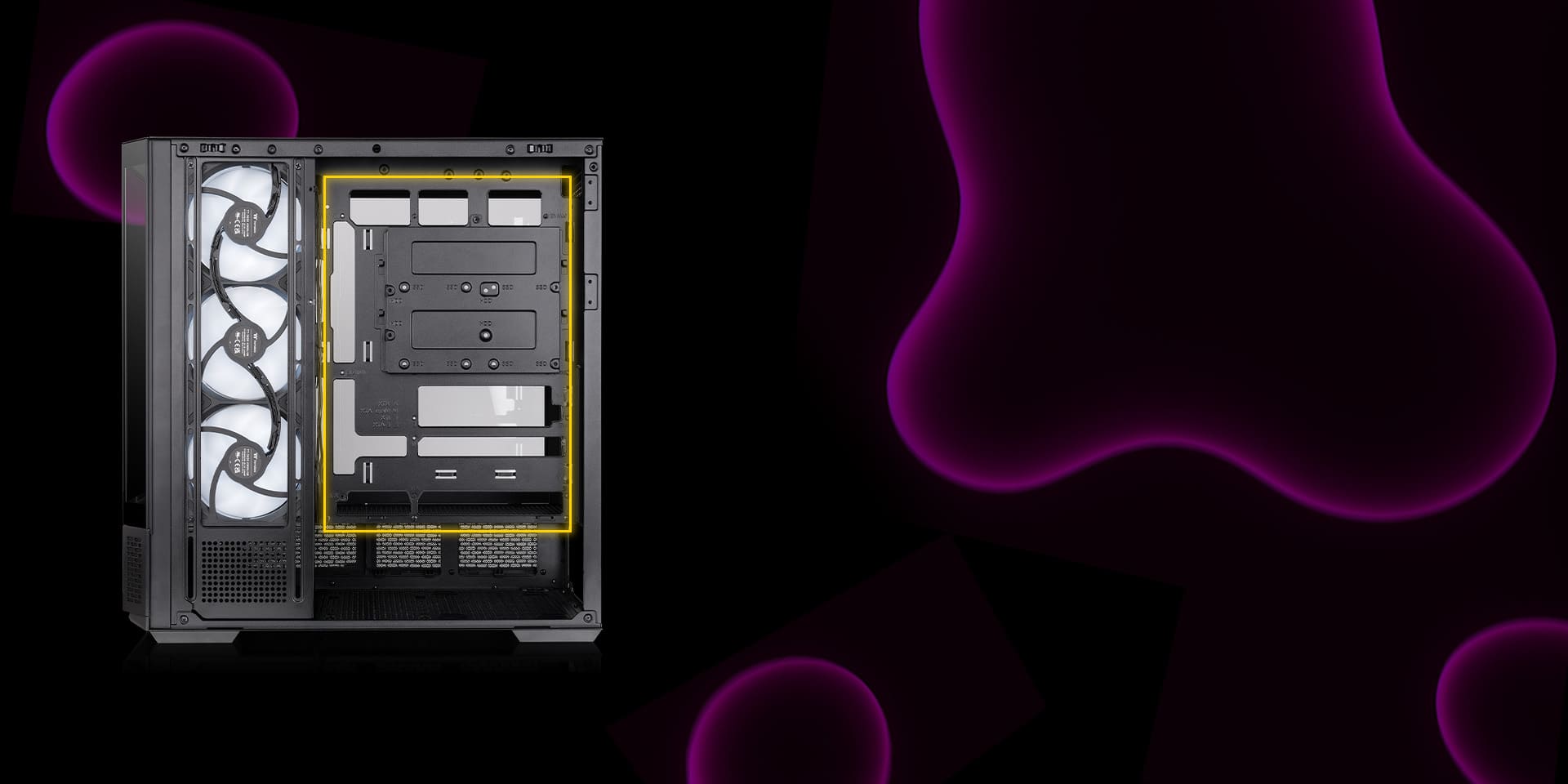

Compatible with Hidden-Connector Motherboards

Created for next-generation motherboards, the View 370 TG ARGB Mid Tower Chassis features a special design that support both standard motherboards and hidden-connector motherboards from ASUS, MSI and GIGABYTE.

*Compatible with hidden-connector motherboards:

• ASUS BTF Series
• MSI PROJECT ZERO Series
• GIGABYTE PROJECT STEALTH Series

The image is for reference only.

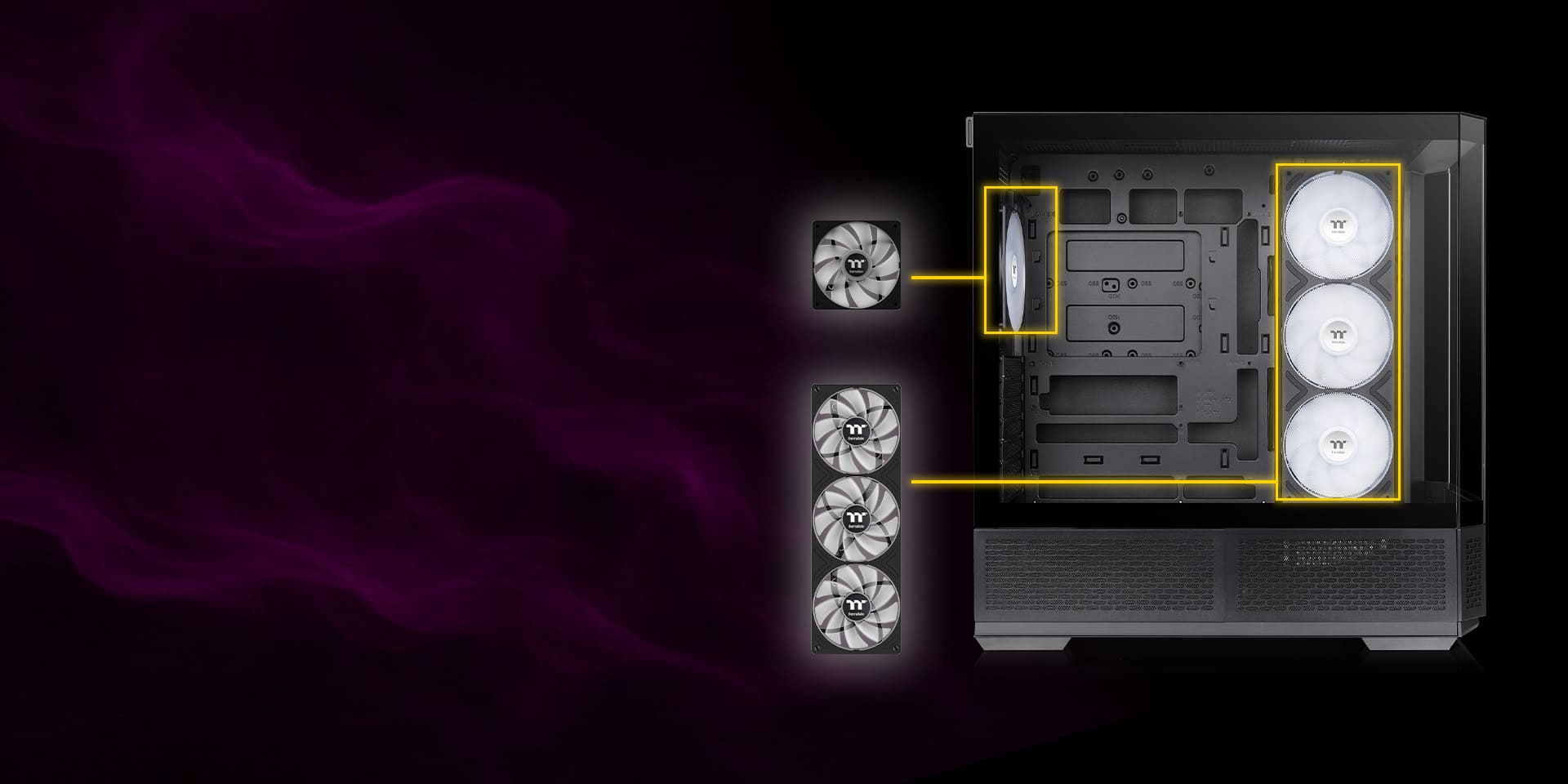

Pre-installed Fan System

The View 370 TG ARGB is pre-installed with a SF360 ARGB PWM Reverse Fan on the MB side and a SF120 ARGB PWM Fan at rear. It’s fascinating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.

The image is for reference only.

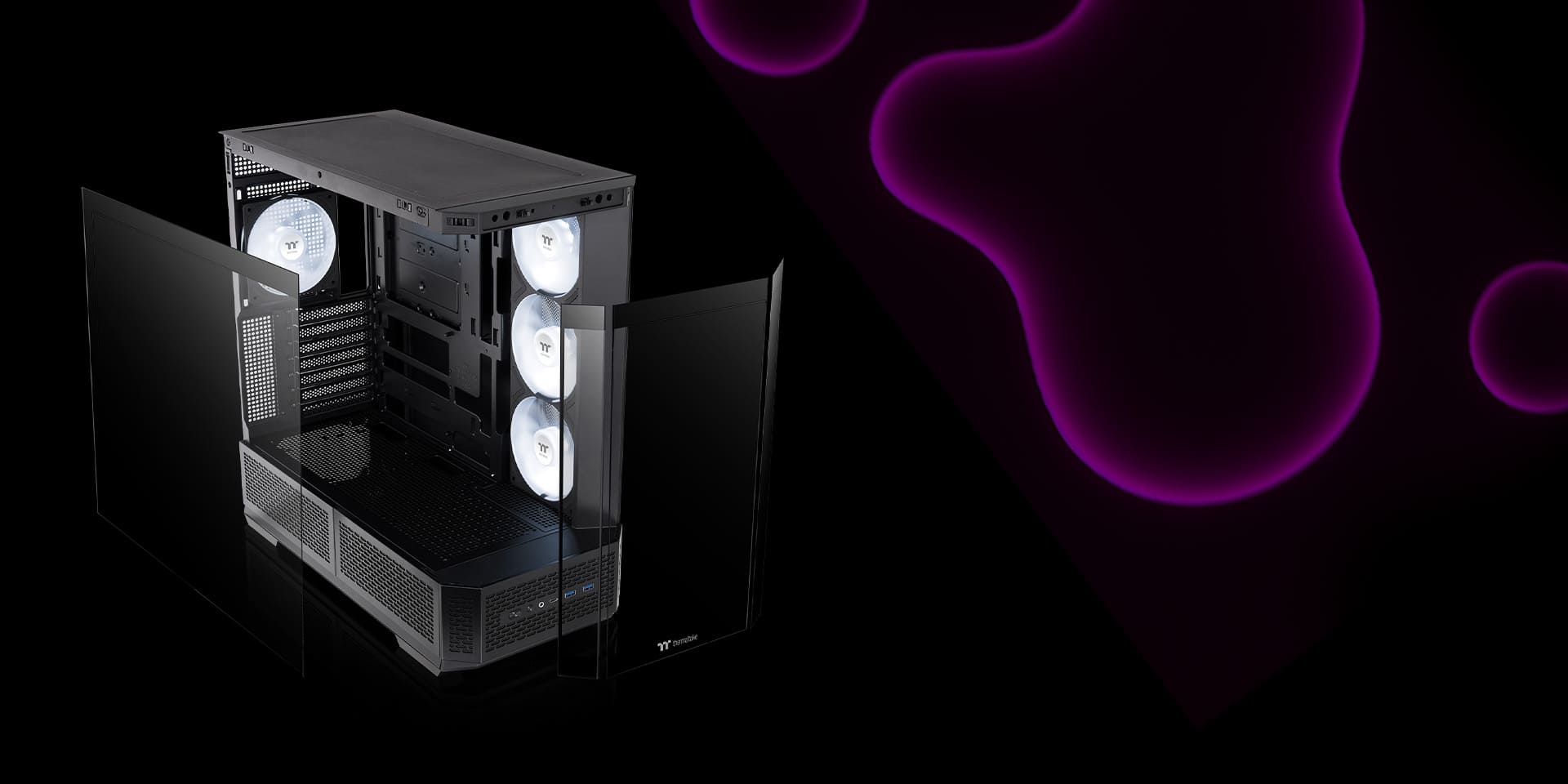

Tempered Glass Front and Left Panels

The View 370 TG ARGB Mid Tower Chassis is designed for better visibility, featuring tempered glass front and left panels, allowing users to enjoy their system with a stylish touch.

All-in-One Compatibility List

	120 mm	240 mm	360 mm	140 mm	280 mm	420 mm
Top	да	да	да	да	да	-
MB Side	да	да	да	-	-	-
Rear	да	-	-	-	-	-

Fan Compatibility List

	120mm	140mm	200mm
Top	3	2	-
MB Side	3	-	-
Rear	1	-	-
Power Cover	3	-	-

Спецификации

P/N	CA-11N-00M1WN-00
Series	View
CASE TYPE	Mid Tower
Dimension (H x W x D)	492.5 x 235 x 478.8 mm (19.39 x 9.25 x 18.85 inch)
PANEL	4mm Tempered Glass x 4
Color	Black
MATERIAL	SPCC
COOLING SYSTEM	M/B Side(intake): 360 x 120 x 25 mm SF360 ARGB PWM Reverse Fan (500~1800rpm, 36.4 dBA) x 1 Rear(exhaust): 120 x 120 x 25 mm SF120 ARGB PWM Fan (500~1800rpm, 29.3 dBA) x 1
Drive Bays	1 x 3.5”+1 x 2.5” or 2 x 2.5”
EXPANSION SLOTS	7(Rotatable Patented Design)
MOTHERBOARDS	6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
Hidden-Connector Motherboard	9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O Port	USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU	Standard PS2 PSU (optional)
FAN SUPPORT	Top: 3 x 120mm, 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mm MB Side: 3 x 120mm, 2 x 120mm, 1 x 120mm Rear: 1 x 120mm Power Cover: 3 x 120mm, 2 120mm, 1 x 120mm
RADIATOR SUPPORT	Top: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm MB Side: 1x 360mm, 1 x 240mm, 1 x 120mm Rear: 1 x 120mm
CLEARANCE	CPU cooler height limitation: 165mm VGA length limitation: 420mm PSU length limitation: 279mm PSU suggested length: 200mm
