NZXT C750 Gold Core 750W 80+ Gold ATX 3.1 PCIe 5.1 750W (80 plus Gold)

Още за NZXT C750 Gold Core 750W 80+ Gold ATX 3.1 PCIe 5.1 750W

750W NZXT C750 Gold Core PSU 80+ Gold, ATX 3.1, PCIe 5.1, 5056547208657, PA-7G3BB-EU

C750 Gold Core: 750 Watt 80 PLUS Gold Fully Modular ATX 3.1 PSU

Overview

The NZXT Gold Core is an ATX 3.1, fully modular PSU with 80 PLUS Gold and Cybenetics Platinum efficiency, A+/A++ noise rating, and a 12V-2x6 PCIe 5.1 connector. Built for modern GPUs, it delivers clean, quiet power with easy cable management for performance PCs.

• ATX 3.1 Certified, PCIE 5.1 Ready: Supports next-gen GPUs with a dual-color 12V-2x6 connector for safe, stable, and efficient power delivery—ideal for modern NVIDIA graphics cards.
• 80 PLUS Gold & Cybenetics Platinum Efficiency: Delivers energy-efficient, stable performance to reduce heat and power draw, even under demanding loads.
• Whisper-Quiet Operation: Cybenetics noise certified for near-silent performance: A++ for C750 and C850 (<15 dBA), A+ for C1000 (15–20 dBA).
• Ready for AMD & NVIDIA GPUs: Compatible with most GPUs using a 12V-2x6 cable or up to three 8-pin PCIe cables.
• FDB Fan with Zero RPM Mode: 135 mm fluid dynamic bearing fan stays quiet and efficient, with Zero RPM mode during light workloads for silent operation.
• Premium 105°C-Rated Capacitors: High-quality components ensure stable, long-lasting performance across a wide range of system loads.
• Fully Modular with Embossed Cables: Use only the cables you need with a clean, compact design and durable, flexible cables for easy routing.

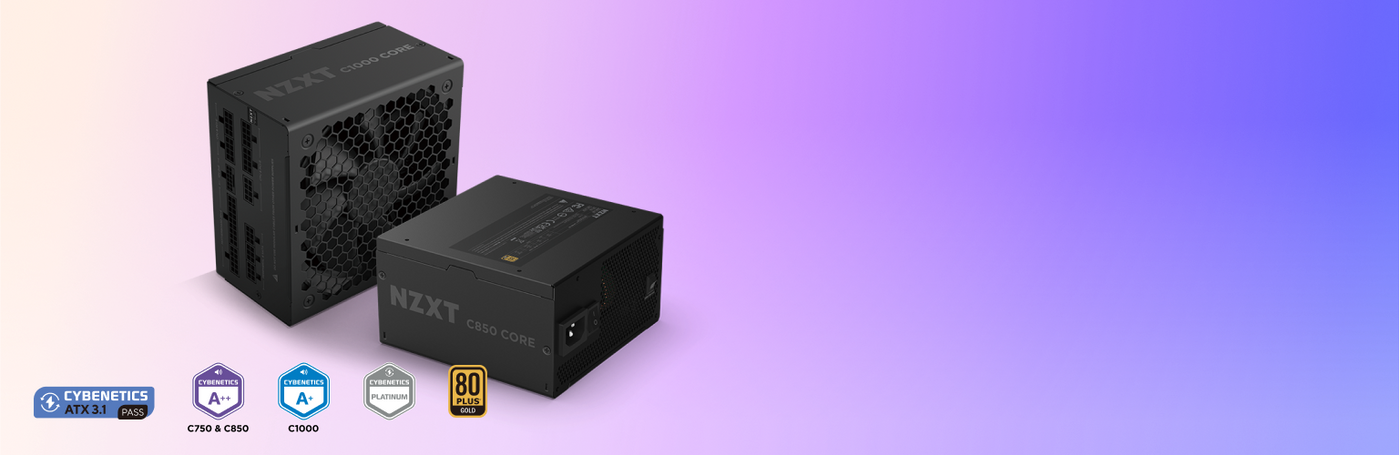

Essential Power for Modern Builds

NZXT Gold Core delivers 80 PLUS Gold efficiency with full ATX 3.1 support for stable performance. Its modular design keeps cable management easy and your build clean, with broad compatibility across cases and components.

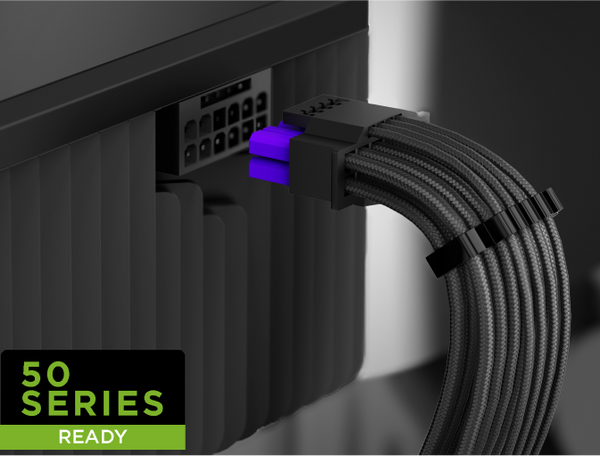

ATX 3.1 & PCIe 5.1 Compatibility

Supports modern GPUs with a 12V-2x6 connector and dual-color housing that lets you see when it’s fully plugged in. Includes up to two 8-pin PCIe cables for legacy support — offering flexibility across a wide range of NVIDIA and AMD builds.

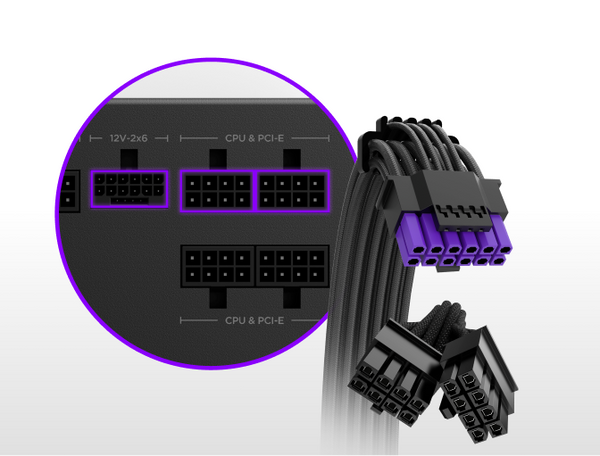

Ready for Any GPU

Supports the latest GPUs from NVIDIA and AMD with a 12V-2x6 connector, plus two 8-pin PCIe cables for legacy cards. Whether you're upgrading or building new, it's ready for your next graphics card.

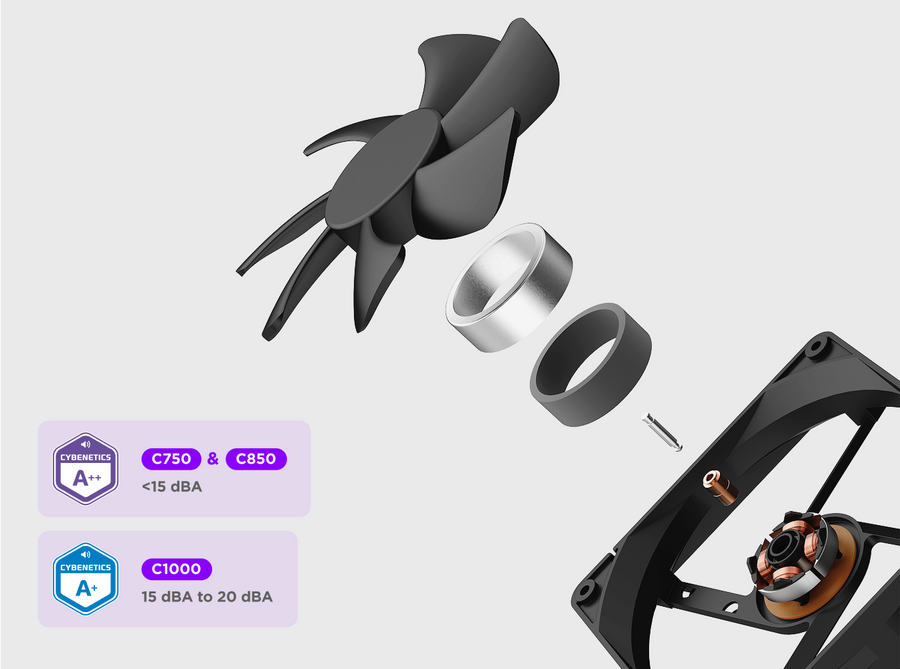

Quiet When it Counts

135 mm fluid dynamic bearing fan stays silent under light loads with Zero RPM mode—automatically stopping the fan when cooling isn’t needed.

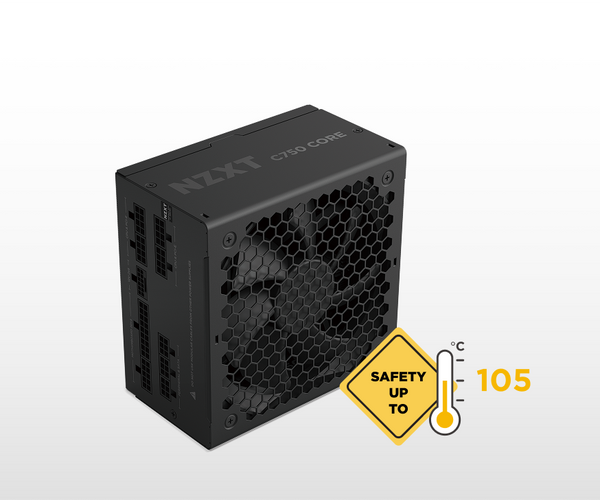

Stable Under Pressure

105°C-rated capacitors deliver steady, reliable power—even under heavy loads.

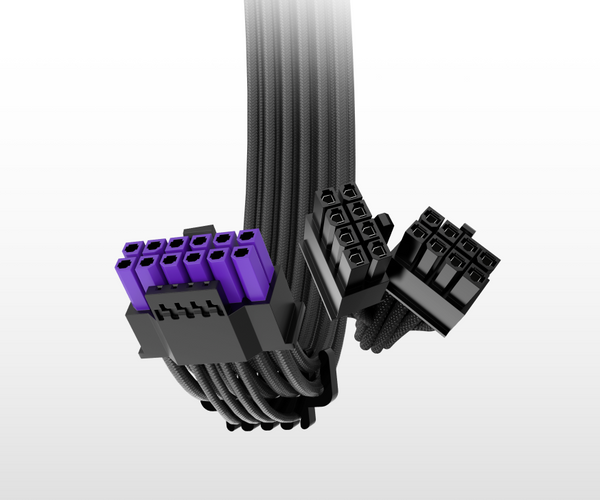

Fully Modular

Embossed cables with included combs help keep your build and cables clean.

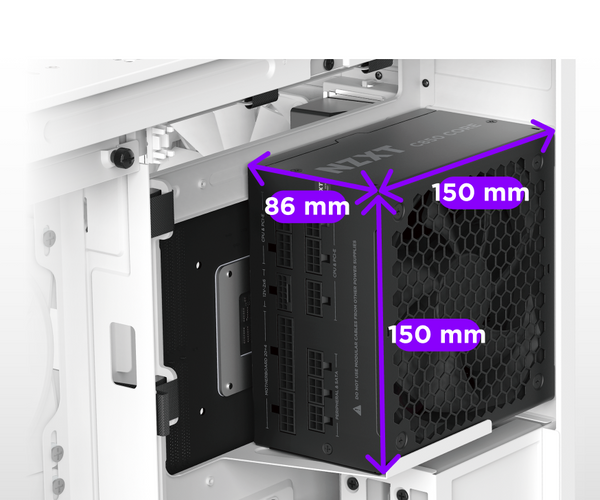

Sized for Easy Builds

150 mm length fits easily in most PC cases, helping keep your build clean and straightforward.

Tech Specs

Dimensions

• Width: 150 mm
• Height: 86 mm
• Depth: 150 mm

General

• Cable Length & Connector Quantity
• 24-pin ATX Power Cable: 600 mm (1)
• 4+4-pin CPU Power Cable: 700 mm (1)
• 8-pin CPU Power Cable: 700 mm (1)
• 6+2-pin PCIe Power Cable: 650 mm (2)
• 16-pin (12+4) 12V-2x6 PCIe Power Cable: 650 mm (1) (300W)
• SATA Cables: 500 + 100 mm (8)
• Peripherals Cable: 500 + 100 mm (3)

AC Input Rating

• 100 – 240 Vac: 10 – 5 A, 50 – 60 Hz
• 200 – 240 Vac (South Korea): 5 A, 50 – 60 Hz

DC Output Rating

• +3.3 V and +5 V: 20 A (120 W)
• +12 V: 62.5 A (750 W)
• 5VSB: 3 A (15 W)
• Total: 750 W

Energy Efficiency

• 80 PLUS Rating: Gold
• 10% Load: 87.9% @ 115 V
• 20% Load: 91.63% @ 115 V
• 50% Load: 92.11% @ 115 V
• 100% Load: 89.53% @ 115 V

Fan Specs

• Size: 135 mm
• Type: PWM
• Speed: 2,300 ± 10% RPM
• Airflow: 103.36 CFM
• Noise Level: 40.5 dBA
• Bearing: Fluid dynamic bearing

Operation

• MTBF: 100,000 hours
• Temperature: 0 – 50°C (Continuous Full Load)

Electrical Features

• PF Correction: Active @ 0.99
• Protections: OVP (Over Voltage), UVP (Under Voltage), SCP (Short Circuit), OTP (Over Temperature), OPP (Over Power), OCP (Over Current)

Product Info

• Compliance Standard: ATX12V v3.1 / EPS12V v2.92
• Regulation & Certification: CE, UKCA, FCC, IC, BSMI, CB (IEC 62368-1 Ed. 3), RCM, KC
• Model Number: PA-7G3BB-US / PA-7G3BB-EU / PA-7G3BB-UK / PA-7G3BB-JP / PA-7G3BB-AU
• UPC: 810074849111 (US) / 810074849128 (EU) / 810074849135 (UK) / 810074849142 (JP) / 810074849159 (AU)
• EAN: 5056547208640 (US) / 5056547208657 (EU) / 5056547208664 (UK) / 5056547208671 (JP) / 5056547208688 (AU)
