Asus ProArt Display PA147CDV Creative Tool

Спецификации на Asus ProArt Display PA147CDV Creative Tool 14’’ 1920x550 5ms

Asus ProArt Display PA147CDV Creative Tool Touch, 4711081218265, 90LM0720-B01170

ASUS ProArt Display PA147CDV Creative Tool – 14-inch, 32:9, IPS, Full HD (1920 x 550), 100% sRGB, 100% Rec.709, Color Accuracy ΔE < 2, Calman Verified, USB-C, 10-point Touch, MPP2.0, ASUS Dial, Control Panel, Compatible with Adobe Software

• 14-inch, 32:9 Full HD (1920 x 550) IPS panel with 10-point multitouch and Microsoft Pen Protocol 2.0 support
• Calman Verified and factory calibrated to Delta E < 2 for exceptional color accuracy, with 100% sRGB and 100% Rec. 709 coverage
• ASUS Dial and Control Panel provide shortcuts in supported Adobe creative software
• Patented mechanical kickstand design folds out smoothly and props the display up in portrait or landscape orientation to fit different creator’s scenario
• Includes one standard HDMI® and two USB Type-C® (DP Alt mode) ports for variety devices connection
• ASUS Eye Care monitors feature TÜV Rheinland-certified Flicker-free and Low Blue Light technologies to ensure a comfortable viewing experience

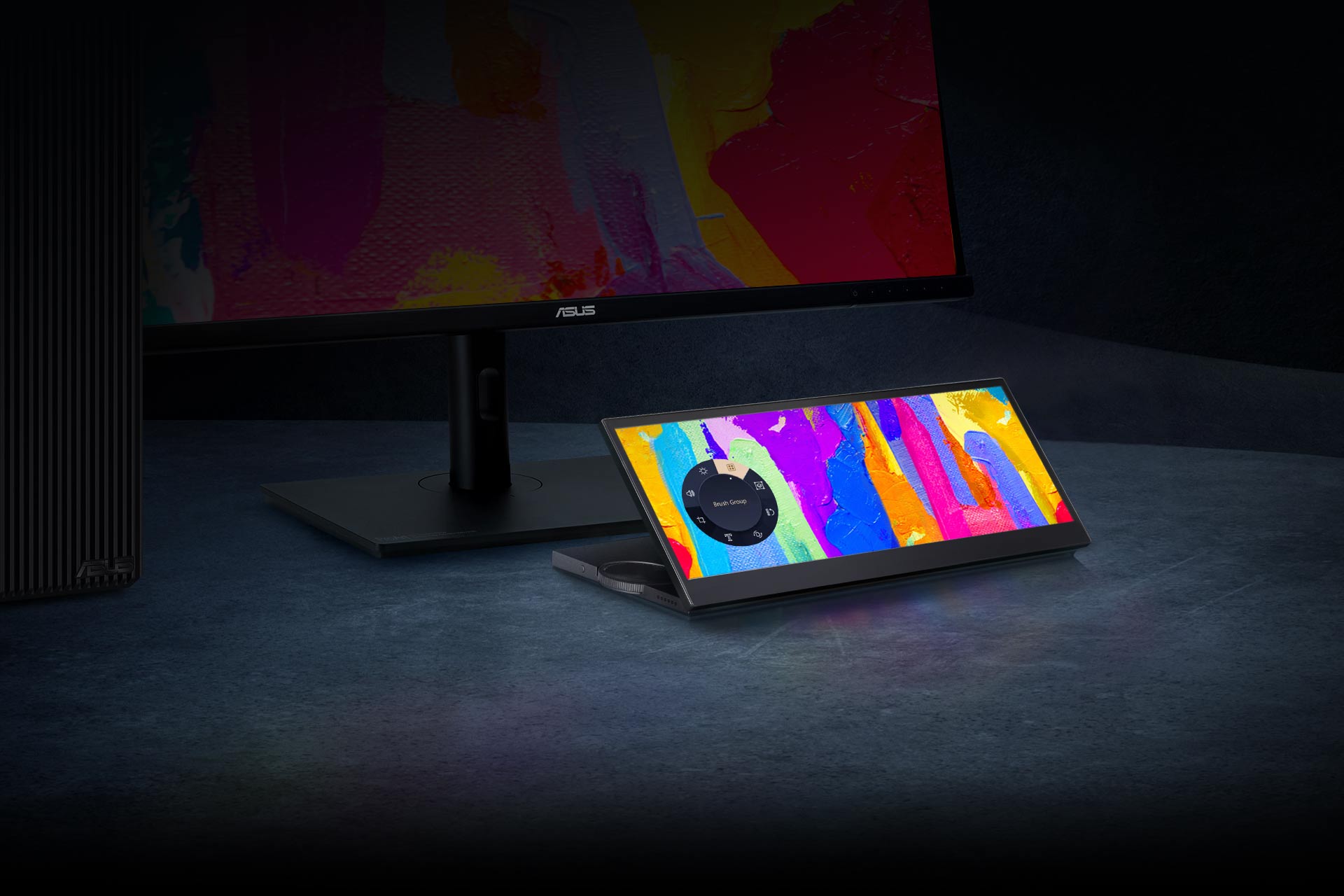

ProArt Display PA147CDV Creative Tool
Dial up Your Creative Flow​

ProArt Display PA147CDV is a 14-inch creative tool​ with a 32:9 aspect ratio.

Built to empower creators and streamline creative workflows inside the studio or out on location, it features the intuitive ASUS Dial, customizable Control Panel, 10-point multitouch controls, and Microsoft Pen Protocol 2.0 (MPP 2.0) support.

PA147CDV is Calman Verified and factory calibrated to Delta E < 2, and it covers 100% of sRGB and Rec. 709 color spaces for exceptional color

. Aesthetically, PA147CDV looks the part, too – winning the 2021 Good Design and 2021 Computex d&i Gold awards.

Built for Creators
Streamline Your Workflow

The customizable Control Panel puts the tools and functions you need front and center, allowing you to make adjustments quickly for a more efficient workflow. For easier multitasking, you can even use split-screen mode to show shortcuts for different apps side by side.

Ready for that Creative Spark

With ProArt Display PA147CDV, you’re always ready when an idea comes. Take notes or sketch on the go with a stylus, or hook it up to your laptop with just a single cable.

Model

• ProArt Display PA147CDV

Display

• Panel Size (inch) : 14
• Pixels Per Inch (PPI) : 143
• Aspect Ratio : 32:9
• Display Viewing Area (H x V) : 344.22 x 98.60 mm
• Display Surface : Non-Glare
• Backlight Type : LED
• Panel Type : IPS
• Viewing Angle (CR≧10, H/V) : 178°/ 178°
• Pixel Pitch : 0.179mm
• Resolution : 1920x 550
• Color Space (sRGB) : 100%
• Brightness (Typ.) : 400cd/?
• Contrast Ratio (Typ.) : 1200:1
• Display Colors : 16.7M
• Response Time : 5ms(GTG)
• Refresh Rate (Max) : 60Hz
• Touch : Yes (PCAP Touch)
• Protection Glass : Yes
• Flicker-free : Yes

Video Feature

• ProArt Preset : Standard
• ProArt Preset : sRGB
• ProArt Preset : DCI-P3
• ProArt Preset : Rec. 709
• ProArt Preset : Scenery
• ProArt Preset : Reading
• ProArt Preset : Darkroom
• ProArt Preset : User mode1
• ProArt Preset : User mode2
• Color Temp. Selection : Yes(5 modes)
• Color Adjustment : 6-axis adjustment(R,G,B,C,M,Y)
• Gamma adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6 )
• Color Accuracy : ?E< 2
• ProArt Palette : Yes
• QuickFit : Yes
• HDCP : Yes, 1.4
• ProArt Chroma Tune : Yes
• Low Blue Light : Yes

Audio Feature

• Speaker : Yes(1Wx2)

I/O Ports

• USB-C x 2 (DP Alt Mode)
• HDMI(v1.4) x 1

Signal Frequency

• Digital Signal Frequency : HDMI: 24 KHz~83 KHz (H) / 23Hz~60Hz (V)
• USB-C: 24 KHz~83 KHz (H) / 23Hz~60Hz (V)

Power Consumption

• Power Consumption : 5.05 W
• Power Saving Mode : <0.5W
• Voltage : 100-240V, 50/60Hz

Mechanical Design

• Tilt : Yes (+25° ~ 70°)
• Pivot : Yes (0° ~ 90° Clockwise)

Dimensions (Esti.)

• Phys. Dimension with Stand (W x H x D) : 357.23 x 127.66 x 20.71 mm ​
• Box Dimension (W x H x D) : 440 x 290 x 92 mm

Weight (Esti.)

• Net Weight with Stand : 0.950 Kg
• Gross Weight : 2.3 Kg

Accessories (vary by regions)

• Color pre-calibration report
• HDMI cable
• Power adapter
• ProArt Sleeve
• Quick start guide
• USB Type-C to A adapter
• USB-C cable
• USB-C to A cable
• Warranty Card

Certificate

• TÜV Flicker-free
• TÜV Low Blue Light
• Calman Verified
